HBlink3 Docker Installer

Version 1.5.0 - Debian 11 / 12 / 13 and Ubuntu 22.04 / 24.04 LTS Support!!

This is a multi-arch docker installer for HBlink3 and HBmonV2 combined for Debian 11, 12, 13 and Ubuntu 22.04, 24.04 LTS.

Important: This installer requires Docker Compose v2 (provided by the docker-compose-plugin package). The legacy docker-compose v1 standalone package is not supported. The installer automatically installs Docker Engine and Docker Compose v2 from the official Docker repositories.

Note: Debian 12 (Bookworm) and 13 (Trixie) along with Ubuntu 22.04 and 24.04 LTS are fully supported with proper PEP 668 compliant Python package management using virtual environments. HBMonv2 now runs in an isolated Python virtual environment. See CHANGELOG.md for version history and updates.

Additional Features

NEW! Parrot built in

Parrot is built into this install (Default disabled, see below how to enable the parrot feature!

Destructive Installer

This is a destructive installer and is recommended to be built on a freshly installed machine running Debian 11, 12, 13 or Ubuntu 22.04, 24.04 LTS.

Docker Multi-Arch build

Docker container pre-built for multi-arch!

• x86_64
• armv6 / armv7
• aarch64
• ppc64
• lots more!

This installer builds the entire HBlink server! It includes all of the dependencies needed to run HBlink3 within docker via docker-compose. The install also includes HBMonv2, which is a dashboard designed for HBlink3 by SP2ONG! This runs side by side, but at this time runs on the host machine using Systemd. HBMonv2 is controlled by a system unit file which runs the python code on the host.

This installer includes all the usual libs and packages including docker, apache2, php and python3. It is recommended that you install this on a 'clean machine'. The script is destructive and is not designed to be used on an exisiting machine that has other software on it! YOU HAVE BEEN WARNED!

Prerequisite

The host system must be running Debian 11, 12, 13 or Ubuntu 22.04, 24.04 LTS. Debian 10 and Ubuntu 20.04 are no longer supported due to the requirement for Docker Compose v2 and modern Python package management. The installer has been tested on these OS versions and works on most architectures. The system requires, at a minimum; 1 core, 512mb of ram, the required spec to run docker and additional processes! The system must be up-to-date and have Git installed. You can install Git from the CLI.

Docker Compose v2: This installer exclusively uses Docker Compose v2 from the official Docker repositories. The docker-compose-plugin package is automatically installed, providing the docker compose command (note the space). A compatibility wrapper is also created to support the legacy docker-compose command (with hyphen) for backward compatibility with existing scripts.

Note* If you get Locale error(s) (LC_CTYPE=UTF-8, which is wrong) can happen when you login over ssh from a Mac to a linux box, and your terminal automatically sets environment variables. There's a checkbox for that. Uncheck it, and you're good to go.

Make sure your system is up-to-date and pull Git from the apt repo.

apt-get install -y git

Installation

1. Preferably a clean Debian 11, 12, 13 or Ubuntu 22.04, 24.04 LTS system. Debian 10 and Ubuntu 20.04 are no longer supported. Make sure your system is up to date with the latest apt repository database. You must be super user "root" to run this installer successfully.

apt update
sudo su

2. Clone this repository to any directory of your choice. The installer will work from any location!

git clone https://github.com/ShaYmez/hblink3-docker-install

Note: While you can clone to any directory, /opt is still recommended for consistency.

3. Now enter into the cloned repo and execute the install script. No need to chmod as permissions are already satisfied.

cd hblink3-docker-install
./hblink3-docker-install.sh

4. Follow the install and any prompts! It will prompt you for kernel updates if necessary.
5. Once the installation is complete you will be presented with the first time run menu. Edit your config or exit to complete setup.

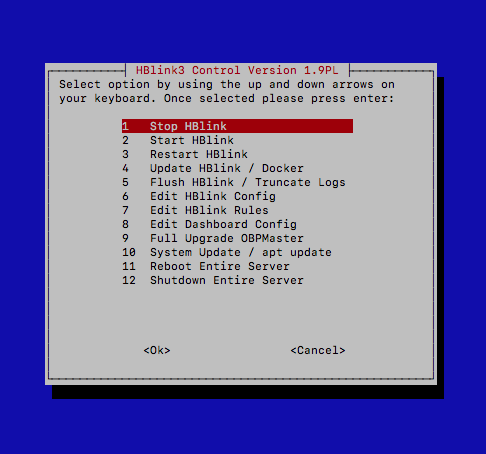

New Menu System released with this installer!

6. Once the installation is complete you will be guided to the Setup Menu. To interact with this menu follow the on-screen instructions! Set up and configure your system with the new menu system! Once finished hit 'Finish Setup & Exit' to exit out of the setup menu.

7. To enter the HBlink control menu, type the command

hblink-menu

8. To interact with the routine scripts manually you can enter the comands directly without the use of the menu

hblink-start
hblink-stop
hblink-restart
hblink-flush
hblink-update
hblink-uninstall

Uninstallation

To completely remove HBlink3 and all its components from your system, you can use the uninstall script:

hblink-uninstall

or

hblink-menu

Then select option 11 "Uninstall HBlink3"

The uninstall script will:

• Stop all HBlink3 services (Docker containers and HBMonv2)
• Remove Docker containers and HBlink images
• Remove systemd service files
• Remove cron jobs
• Remove control scripts from /usr/local/sbin
• Backup configurations to /root/hblink3-backup-[timestamp]
• Remove installation directories (/etc/hblink3, /opt/HBMonv2, /var/log/hblink)
• Restore default Apache index page

Note: Docker, Apache2, PHP, and other system packages will NOT be removed during uninstallation.

9. To interact with HBlink3 manually using docker you need to enter the HBlink3 directory

cd /etc/hblink3

10. You can only interact with HBlink3 in this directory. Use the following commands to interact with the installation. This installer uses Docker Compose v2 (docker-compose-plugin):

docker compose up -d       # Start containers (Docker Compose v2)
docker compose down        # Stop containers
docker compose restart     # Restart containers
docker compose pull        # Update images
sudo nano docker-compose.yml

Note: The legacy docker-compose command (with hyphen) also works via a compatibility wrapper that forwards to docker compose, but using docker compose (with space) is recommended as the official Docker Compose v2 syntax. 11. Edit your configuration before deployment!

nano hblink.cfg
nano rules.py

12. Check the logs for errors!

docker container logs hblink
or
/var/log/hblink/hblink.log

10. Interact with HBMonv2 (Dashboard engine)

systemctl start|stop|restart|status hbmon

Within this installation includes the new HBMonv2 by Weldek SP2ONG

• Better dashboard for monitoring per page
• Python build
• Websocket connection to web interface
• Can be easily secured by SSL / Websocket secure
• Includes lastheard database with auto cron installed
• Includes talkgroup html editable page

Technical Details - Python Package Management

The installer uses modern Python package management following PEP 668 standards for all supported OS versions:

• HBMonv2 runs in an isolated Python virtual environment at /opt/HBMonv2/venv
• All Python dependencies are installed within this virtual environment, avoiding system-wide package conflicts
• The systemd service automatically uses the virtual environment's Python interpreter
• This approach eliminates "externally-managed-environment" errors and conflicts with system packages

This ensures clean, maintainable installations that follow modern Python best practices across all supported Debian and Ubuntu versions.

Easy Installation And Upgrade

The installation can be upgraded either by the use of a future scripts or by manually backing up your configuration and re-running the install script. Also the ability and really cool feature of docker-compose is that its easy to update the container with fresh images! Run by a simple command. Make sure you are in the /etc/hblink3 dir.

docker-compose pull

or

hblink-update

Ports to forward

http 80/tcp
https 443/tcp
report 4321/tcp
websocket 9000/udp
MMDVM 62030-62031/udp
OBP 62032-62050/udp
ssh 22/tcp

Enable the Parrot

This installer comes with the parrot disabled. To enable the parrot follow commands below.. Asuming you are super user root!

nano /etc/hblink3/docker-compose.yml

Scroll down to the bottom of this compose file and look for - 'PARROT_ENABLE=0' Edit this to enable the Parrot master server which will be excuted upun restart

- 'PARROT_ENABLE=1'

Ctrl X and save! Now lets enable the peer to connect to the master in our config...

nano /etc/hblink3/hblink.cfg

Scroll down to the [Parrot] stanza and edit ENABLED: True to enable. Next we have put an example rule in rules.py. Remove the # hashes to enable routing of the parrot.

nano /etc/hblink3/rules.py

Ctrl X and hit save! Once done save this and enter the the HBlink control menu

hblink-menu

Select option 4 "Update HBlink / Docker Watch the terminal for any errors while bringing up the project! You can use the parrot on TG9999 (Default) or edit for your own tastes!

Postrequisite

Make sure you have properly configured your firewall!!! If using Vultr servers they come default with full firewall blockade! For initial testing disable the firewall!

ufw disable

More to come...

We will be updating this repository to include more documentation. In the mean time learn about docker @ https://docker.com and visit the HBlink3 official repo for further documentation! https://github.com/HBLink-org/
